Server Cabinet 42U 600mm x 1070mm

RCS62107
Enquiry
A-Rack standard 42U 600mm x 1070mm cabinet for low to medium density server and networking applications. Compact width to optimize data center space. RCS62107
view product overview
  • Product Description
  • Technical Specifications
  • Download
Product Description

A-rack RCS® Features & Benefits

Convenience and Simple


Simple Selection

A-rack has made it easy for choosing from and compiling dozens of part numbers to create a single rack. Optional flatpacking make all parts well pre-mounted and make assembly simpler &easier.

Quick release doors

Front door can be changed to the opposite side or interchanged with rear doors. Doors can be easily removed by simple lift-off.

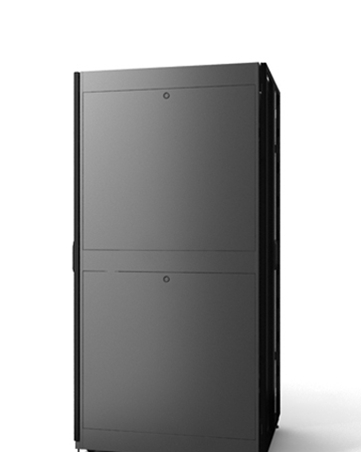

Half-height side panels

Half-height side panels make suitable size and weight for easy handling and mounting to rack. Side panels are lockable utilizing same key with the doors

Eyebolt support integrated into frame

Integrated eyebolt holes at the top of the rack frame allow the rack to be lifted for movement and placement using eyebolt lift machines.·

Cable access opening in roof

Large cable access knock-out holes in the roof provides access for overhead cable entry and provisions for air containment. The bottom design allows for unobstructed cable access through a raised floor.

Perforated front and rear doors

Perforated front door and rear doors provide ample ventilation for severs and networking equipment.. Front door perforated area is optimized with a curved profile to provide greater surface area and allowance of more perforation coverage and higher perforation ratings

Hardware provided

All racks are provided standard with hardware bag that includes hardware for mounting IT equipment.

Easily removable cable access roof

Roof can be simple removed with pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. And the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

Equipment mounting rails integrate with patch cabling systems

Equipment mounting rails include zero U mounting holes beside the EIA 19" mounting space which allow the installation of Data Distribution Cable patch systems without taking up any critical equipment U-space.


Flexibility

Integrated baying hardware

Rack includes pre-installed baying hardware to join racks in a row and provide additional stability to rack. The pre-installed baying hardware includes holes for joining rack at 600MM centers or 24” centers depending on the floor layout

Castors and adjustable leveling feet

Racks are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill

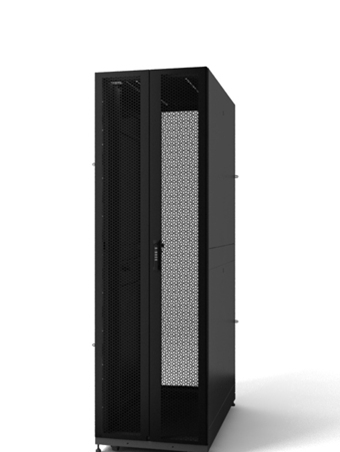

Perforated split rear doors

The split rear doors help to maximize floor space and need small room for door swing

Adjustable mounting rails

The vertical mounting rails can be adjusted for various depth IT equipment. Clear U position are numbered front and back for rapid installation of equipment

Full height accessory channels

The full height accessory channel provides tool-free installation for accessories without occupying U space

Compatibility

EIA-310

Compatibility with all EIA-310 compliant 19” equipment

Compatible with RakworX accessories

Compatibility with a variety of RakworX accessories to provide the ability to create a complete rack system.

Stability and Safety

Integrated grounding

The roof, side panels and front and rear doors are grounded to the frame.

Structural stability

Heavy –duty frame, mounting rails and casters provide for 1500KGS static and 1200KGS dynamic loading ratings


Technical Specifications
Physical
Maximum Height
1999.5mm
Maximum Width
600mm
Maximum Depth
1070mm
Rack Height
42U
Net Weight
120kgs
Shipping Weight
140kgs
Shipping Height
2150mm
Shipping Width
600mm
Shipping Depth
1170mm
Color
Black
Maximum Mounting Depth
918.5mm
Minimum Mounting Depth
190.5mm
Rack Width
19”
Weight Capacity
1200kgs(dynamic load)
Weight Capacity
1500kgs(static load)
Environmental
Protection Class
IP20
Conformance
Approvals
UL2416, UL60950-1
Sustainable Offer Status
RoHS
Compliant
CE
Compliant
SGS
Available in download
