Make Your Computing EASY Today

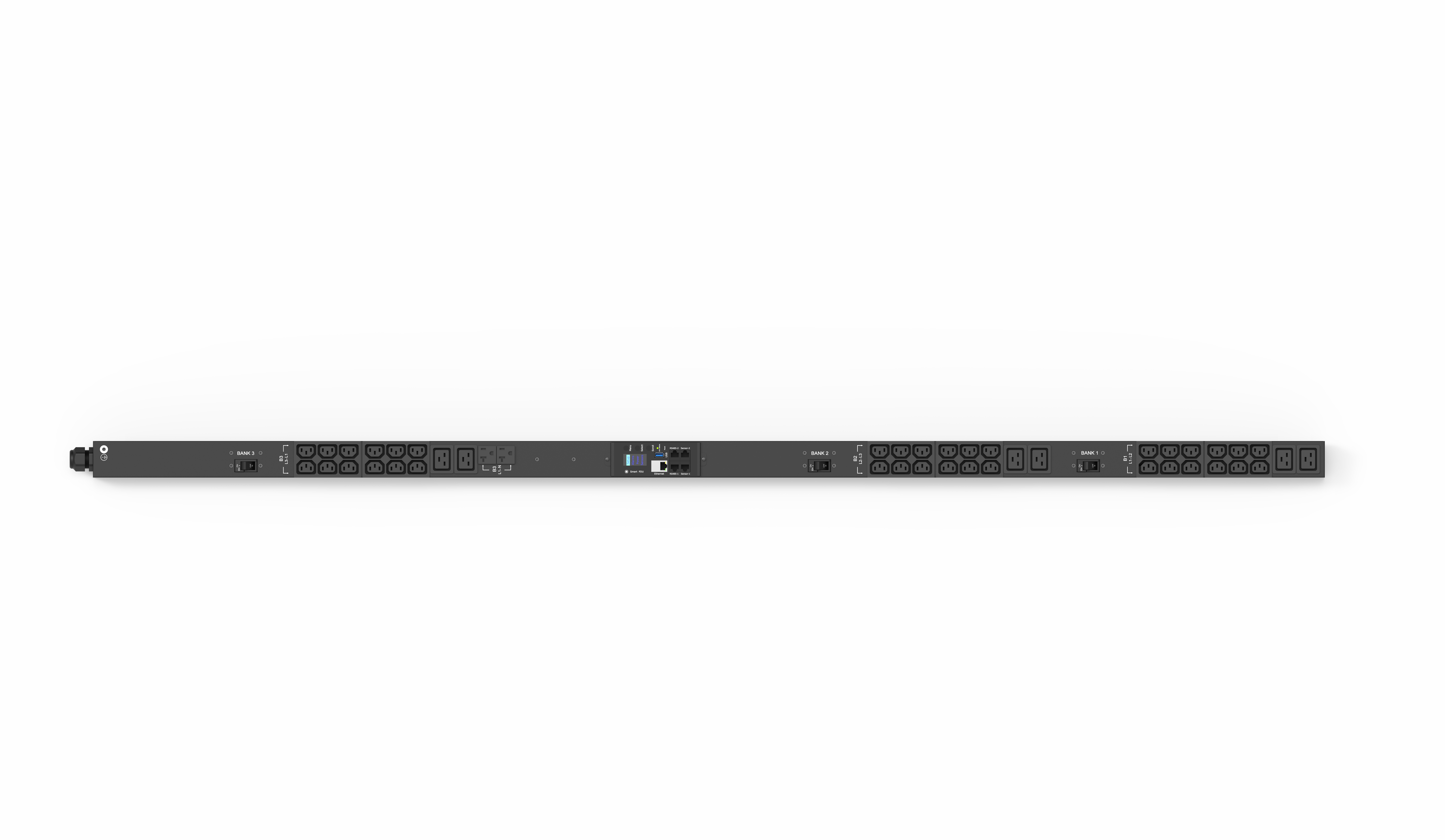

A-rack AP5000 Metered PDU

AP5033-360602-30E
Enquiry
RakworX Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by RakworX Centralized Management platforms using Data Center Expert, Operations, Capacity, and Energy Efficiency. AP5000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers.
view product overview
  • Product Description
  • Technical Specifications
  • Download
Product Description

AP5000 Series Metered rack Power  Distribution Units (PDUs)  provide real-time remote  monitoring of connected loads.

User-defined alarms warn of  potential circuit overloads  before critical IT failures  occur.

IEC60950 industrial  standard PDU

Multiple locking IEC socket

Socket color management

Compact size, only 50mm

Optional sensor, rich  function expansion

Remote detection PDU

Accurate measurement of  embedded operating  system, intelligent control.

Work with centralized  control platform perfectly  compatible

Technical Specifications
Output
Nominal output voltage
200-240V
Maximum total current draw
24A
Output connections
IEC C13[36]+C19[6] , 5-20【2】
Input
Nominal input voltage
208V
Input frequency
50/60 Hz
Input connections
IEC309 or NEMA plug
Cord length
3M
Number of power cords
1
Maximum input current
16A
Environmental
Operating environment
0-45°C
Operating relative humidity
0-95%
Storage relative humidity
0-95%
Operating elevation
0-3000 meters
Storage temperature
-25-65°C
Storage elevation
0-15000 meters
Physical
Maximum height
50mm
Maximum width
55mm
Maximum depth
1800mm
Net weight
7.5KGS
Color
black
Sustainable Offer Status
RoHS
Compliant
CE
Compliant
SGS
Available in download
Download
AP5033-360602-30E Drawing 427KB126
